    PU glass wool Fireproof Shipping Container Insulation Panels

    Ask Lasest Price
    Brand Name : ZC
    Model Number : ZC-BLM
    Certification : CE/ISO
    Price : Negotiation
    Delivery Time : on condition
    Payment Terms : TT or LC
    • Product Details
    • Company Profile

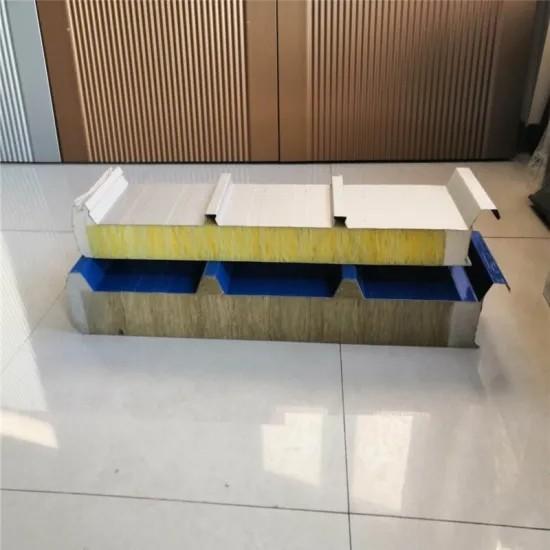

    PU glass wool Fireproof Shipping Container Insulation Panels

    Container house panel with fire resistance


    SpecificationStandard effective width: 1000mm
    Alternative effective width: 500-1000mm
    Panel length: less than 11.8m because of the container inner length
    Steel ThicknessTop steel:0.5-0.8mm
    Bottom steel:0.4-0.6mm
    Connection MethodOverlap
    Core Materialrock wool, PU+rock wool, PU+glass wool
    Density of core materialGlass wool: 64kg/m3, rock wool: 120kg/m3
    Fire Rating GradeA

    Advantage of PU Edge sealing:
    1. enhance the strength;
    2. works better on dampproof.
    Advantage of Global Star IW sandwich wall panel:
    1. Hidden nailing lines and nailing space;
    2. Easy to conduct water at the interface;
    3. Cavity design at the interface prevents capillary effect;

    3. Decorative seams of different widths:0mm/20mm/40mm.

    Core material comparision table

    MaterialEPSPUMinerial WoolGlass WoolRock Wool
    Fire RatingBBAAA
    Smoke/Toxic GasDark SmokeDark Smokenontoxicnontoxicnontoxic
    Max used temperature85ºC170ºC300ºC200ºC600ºC
    Fire-endurance limitNoNo≤60min30-120min30-240min
    Thermal conductivity0.039-0.0410.022-0.0240.038-0.0480.033-0.0430.036-0.043
